QZJ2.5KT-1 Bricking Lining Machine
For rotary kilns Ø2500–4000 mm.
CE Certified
Product Overview

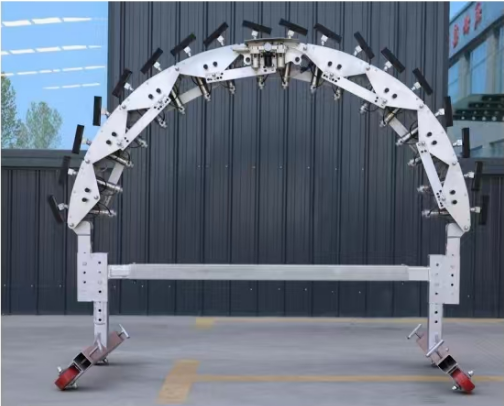

The QZJ1.8KT-1 Bricking Lining Machine is an economical solution for refractory lining in rotary kilns with inner diameters from 1800 mm to 2400 mm. Weighing only 260 kg, it is easy to transport and install while delivering the same operator safety, high efficiency and precise lining quality as the full QZJ series.
| Weight | 260 kg |
| Framework Material | High-strength aluminum alloy 6061-T6 |
| Packing | Steel box: 204×60×86 cm |
| Certification | CE Certified |
Specifications
Technical Specifications
| Parameter | Details |
|---|---|
| Weight | 260 kg |
| Framework Material | High-strength aluminum alloy 6061-T6 |
| Packing | Steel box: 204×60×86 cm |
Operator Protection
Safety Features
| Feature | Description |
|---|---|
| Load Capacity | Supports up to 2 pallets of bricks (1,540 kg) along with workers and equipment. |
| Deck | Flat deck design offers a spacious and safe working area for operators. |
| Fall Guards | Arched carriage pin links with anti-derailment fixtures ensure easy disassembly and safe operation. |
| Planking Material | Deck uses grid mesh that avoids debris buildup; wood boards on both sides protect refractory bricks. |
| Frame | Constructed from 6063-T6 high-strength aluminum alloy — strong as steel but 60% lighter. |
| Access Ladder | Equipped with a reliable ladder for access to both upper and lower workstations. |
| Safety Check Valve | Automatic valve maintains cylinder pressure during sudden air loss, ensuring operational safety. |
Performance
Efficiency Features
| Feature | Description |
|---|---|
| Arch Structure | Double-arch design increases efficiency and provides easy top locking during installation. |
| Arch Components | Fixed pin shaft ensures quick, stable, and safe arch installation. |
| Keying Access | Dome-shaped large access area allows ergonomic, convenient movement for workers. |
| Trolley Design | Rails on both sides allow smooth trolley movement, maximizing workspace and operation flexibility. |
| Trolley Components | Includes braking pulleys with anti-derailing devices for secure and controlled movement. |
| Cylinders | Integrated valve at the cylinder base simplifies press-and-close operation and maintenance. |
| Safety Check Valve | Reinforces pressure stability during air loss, preventing unexpected downtime. |
| Master Valves | One-touch linked operation via the main control valve behind the cylinder — simple and efficient. |
| Air Filter | Combined filter and lubrication unit removes moisture and dust while protecting pneumatic components. |
| Casters | 4 heavy-duty polyurethane wheels with brakes prevent slippage and protect kiln brick surfaces. |
| Assembly | Modular pin assembly system enables setup in under 2 hours with an experienced crew. |
| Productivity | Up to 1 meter per hour achievable with a skilled operator. |
| Spare Parts | Comes with long-term spare parts kits for maintenance and durability. |
| Tools | Includes a comprehensive toolbox with essential tools and hardware pins. |
Explore More
Related Products
QZJ5KT-1 Bricking Lining Machine
For rotary kilns Ø4000–5000 mm.
Customized Bricklaying Machines
Engineered to your kiln diameter.
FAQ
Frequently Asked Questions
Common questions buyers ask about the QZJ1.8KT-1.
What kiln diameter does the QZJ1.8KT-1 cover?
The QZJ1.8KT-1 is designed for small rotary kilns with inner diameters of 1800–2400 mm, typically lime, clinker and auxiliary kilns in cement plants.
How much does the QZJ1.8KT-1 weigh?
The QZJ1.8KT-1 weighs only about 260 kg — the lightest machine in our range — while still delivering a 2000 kg payload. One operator can move and position it without crane assistance, which makes it ideal for maintenance shutdowns on small kilns.
Is the QZJ1.8KT-1 CE certified?
Yes. The QZJ series bricking lining machines are fully CE-certified, with safety check valves, fall guards and anti-derailment fixtures built in for operator safety.
How quickly can the QZJ1.8KT-1 be installed?
The modular pin assembly system enables setup in under 2 hours with an experienced crew; the machine reaches a bricklaying speed of up to 1 meter per hour with a skilled operator.
How is the QZJ1.8KT-1 packed and shipped?
Machines are disassembled into major components and securely fixed inside a reinforced steel crate of 330 × 180 × 200 cm (approx. 2300–2300 kg packed) — suitable for sea or land transport, with packing lists, assembly instructions and safety guidelines included.
Can a custom QZJ1.8KT-1 be built for a smaller kiln?
Yes. We tailor the working radius, arch frame width and height, component modules and mobility to your kiln diameter range, wall height and automation preference, helping you save material, labour and shipping costs.
